New

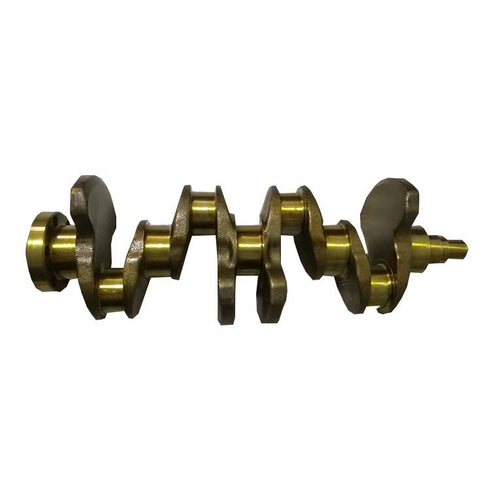

Mazda F6 Crankshaft - B1600 626 - Ford Courier Ranger

SKU: CrkSft-F6

AVAILABILITY: Sold Out - Contact us to order

PRODUCT TYPE: Crankshafts

BRAND: Quantico

R 2,250.00

Tax included ZAR only - Price subject to availability

Hurry! Only 0 Left in Stock!

Order in the next to get it by in major areas - delivery to minor/outlying areas may take 1-3 days longer
PRODUCT INFORMATION
Technical Data & Specifications
Foreign Orders & Engine Part Finder
How To Order
PRODUCT INFORMATION

New crankshaft suitable for
Mazda F6 1.6

Product For Sale - Information & Options
Item

  • Crankshaft

Specifications

  • Main journal ⌀: 60mm
  • Conrod journal ⌀: 51mm
  • Front seal ⌀: 34mm
  • Rear seal ⌀: 90mm
  • Stroke: 77mm
  • Flywheel holes: 6
  • Overall length: 490mm

Vehicle Models
Mazda

  • 626
  • B1600

Ford

  • Courier
  • Ranger

Part Numbers

  • OEM Number: F801-11-101D, F801-11-301C, F801-11-301B
  • Cross Reference: ###
  • Other Codes: ###

Images are for illustration purposes only. All trademarks are the property of their respective owners.
